E.M.M.S. 6 - Electrical Machines Modular System 3 kW
A.C. Machines

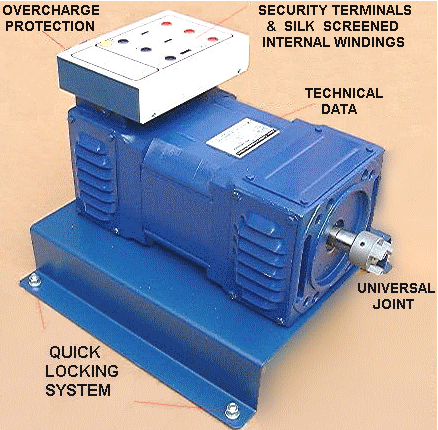

AC electrical machines characteristics:

  • Design: with typical industrial characteristics
  • Complete with base plate
  • Input/output with standard 4 mm safety sockets
  • Imprinted terminal boards with the synoptic
  • Two shaft ends on request
  • Cover for inspection of collector-brush area
  • Protection against thermal overload
  • With coupling cog for easy engagement with other machine
  • Manual explaining theory and practice for laboratory experiments included

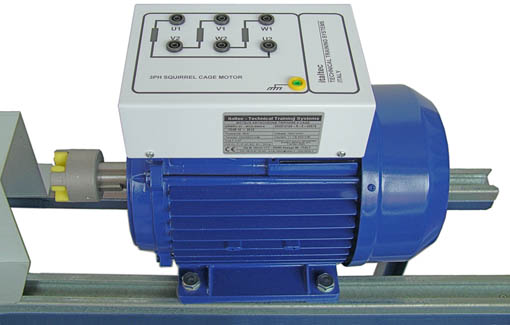

    • MOD.6040 3-Phase Squirrel
    Cage Motor 3kW
    		 Nominal voltage: 220/380V; delta/star / 50Hz;
    Nominal speed: 2800rpm;
    Nominal power: 3 kW;
    Dimensions: LxWxH: 35 x 33 x 29cm; Weight: 18,0 Kg;

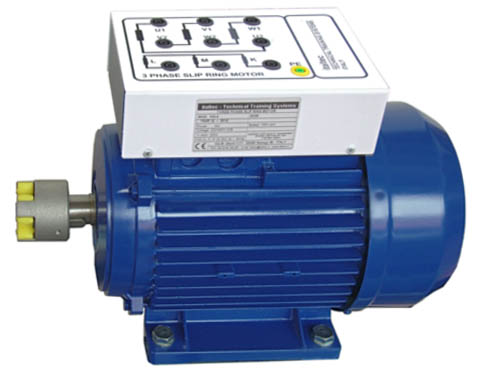

    MOD.6050 3-phase Slip Ring
    Asynchronous Motor 3kW;
    		Nominal voltage: 220/380/400V (delta/star) / 50Hz;
    Nominal speed: 2920rpm;
    Nominal power: 3kW;
    Dimensions: LxWxH: 35 x 33 x 29cm; Weight: 26,5 Kg

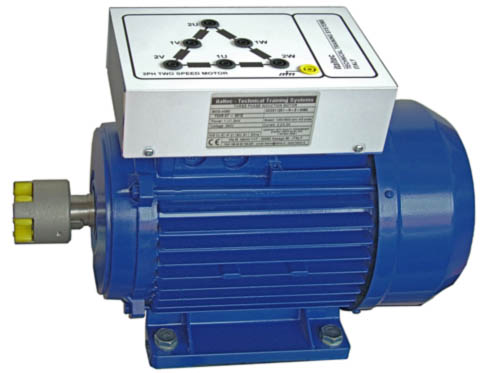

    MOD.6060 3-Phase Dahlander Motor
    2/4 Poles 3kW/1,5kW
    		 Nominal voltage: 380/400V (delta/ star-star) / 50Hz;
    Nominal speed: 2860/1430 rpm;
    Nominal power: 3kW/ 1,5kW;Cos phi: 0,62 / 0,73
    Dimensions: LxWxH: 35 x 33 x 29cm; Weight: 24,0 Kg

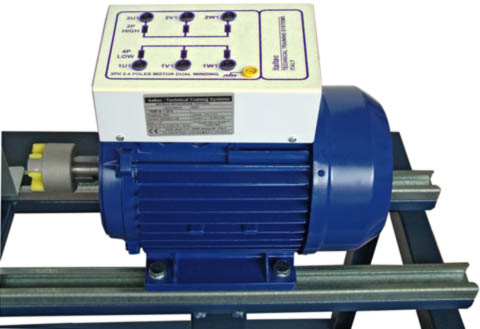

    MOD.6065 3-Phase motor 4/6 Poles
    Two separate windings 2,2kW
    		Design: Industrial, complete with base plate.
    Nominal voltage: 380/400V (star/star) / 50Hz;
    Nominal speed:1380/960rpm;
    Nominal power: 2,2/1kW;
    Dimensions: LxWxH: 35 x 21 x 19cm; Weight: 15,0 Kg
    MOD.6070 Three Phase
    Synchronous Generator 3kVA

    Modes: motor, generator
    Nominal voltage: 220/380/400V/50Hz (delta/star)
    Excitation voltage: 200V;
    Nominal speed: 3000rpm;
    Nominal power: 3kVA; Cos phi: 1
    Dimensions: LxWxH: 35 x 33x 29cm; Weight: 26 kg
    MOD.6072 Single Phase
    Synchronous Generator 1,5kVA
    		Non-salient pole rotor;
    Nominal voltage: 220/230V a.c.;
    Exciting voltage: 200V d.c.
    Speed: 3000rpm;
    Nominal power: 1,5kVA; Cos phi: 1
    Dimensions: LxWxH: 35 x 33 x 29cm; Weight: 26,0 Kg
    MOD.6080 3-phase
    Reluctance Motor 3kW

    		 Nominal voltage: 220V/380/400V (delta/star) / 50Hz
    Nominal speed: 3000rpm;
    Nominal power: 3kW; Cos phi: 0,37
    Dimensions: LxWxH: 35 x 33 x 29cm; Weight: 25 kg
    MOD.6090 Single Phase a.c.
    Capacitor Run Motor 3kW
    		 Nominal voltage: 220/230V a.c.;
    Speed: 2800rpm;
    Cos phi: 0,37
    Dimensions: LxWxH: 35 x 33 x 29cm; Weight: 24 Kg
    MOD.6120 Single Phase a.c.
    Capacitor Start/ Run Motor 2,2kW
    		With starting relay.
    Nominal voltage: 220/230V a.c. single-phase / 50Hz;
    Speed: 2815 rpm;
    Nominal power: 2,2 kW
    Cos phi: 0,94
    Dimensions: LxWxH: 45 x 33 x 29cm; Weight: 24,5 Kg
