LABORATORY INSTRUMENTS Class 0,5

Technical features
AC and DC Voltmeters
AC and DC Ammeters
Electrodynamics Power Meter
Electrodynamics Frequency Meter
1-phase and 3-phase Power Factor Meters
Current Transformers T.A.
Shunt
ARON Measure System
Phase Sequence Indicator

Scale detail

Technical characteristics These instruments are studied and realised for the employment in electrotechnics laboratory or in electronics laboratory.
The absorption and the recovery times of the pointer ( which are particularly light and lower), are negligible.
This technique leaded also to avoid the deterioration of pivots caused by shakes or vibrations.
The suspensions are on sprung sapphires with short excursion, and for this reason, the instruments can be considered shockproof.
The instruments case is strong enough to garantee the resistence against strikes and falls, because it is made with a thermosetting material.
The scales are drew with an high number of divisions and lots of instruments have more scales in the way to avoid the adoption of unconfortable constants.
In general, it is enough to do simple operations like x2,x1, :2 and an abacus supplies (on the instruments scales with lots of Range), the constants to multiply the reading, based on nominal values of V and I.
This is a very usable result in the didactic employment.
The knife pointer and the mirror scale avoid the parallax reading error.

AC and DC Voltmeters
CodeModRangeCodeModRange
LAV1Mobile Iron cc/ca3-6-12-30VLCV1Mobile bobbin for dc60-120-300-600mV-1,2-3-6V
LAV2Mobile iron for dc/ac60-120-300-600VLCV2Mobile bobbin for dc6-12-30-60-120-300-600V
LAV3Mobile iron dc/ac48-120-240-480V   Special Ranges on request

To page head

AC and DC Ammeters
CodeModRangeCodeModRange
LAA1Mobile iron for dc/ac60-120-300-600mALCA0Mobile Bobbin for dc 60-120-300-600uA
LAA2Mobile iron for dc/ac0,6-1,2-3-6ALCA1Mobile Bobbin for dc 0,6-1,2-3-6-12-30-60-120mA
LAA3Mobile Iron for dc/ac0,5-1-2,5-5ALCA2Mobile Bobbin for dc 60-120-300-600mA-1,2-3-6-A
LAA4Mobile iron for dc/ac5-10A
LAA5Mobile iron for dc/ac2,5-5-10-20A

To page head

Electrodynamic Power Meter for dc and ac
CodeVolt RangeI RangeCodeVolt RangeI Range
LW1/45075-150-300-450V0,5 - 1 ALW5/60075-150-300-600V2,5 - 5 A
LW2/45075-150-300-450V1 - 2 ALW10/15015-30-75-150V5 - 10 A
LW5/48048-120-240-480V2,5 - 5 ALW10/45075-150-300-450V5 - 10 A
LW1/60075-150-300-600V0,5 - 1 ALW10/60075-150-300-600V5 - 10 A

To page head

Frequency Meter
LFI Pointer Frequencymeter
Range: 30 - 70 Hz;
Voltage: 100 - 500V

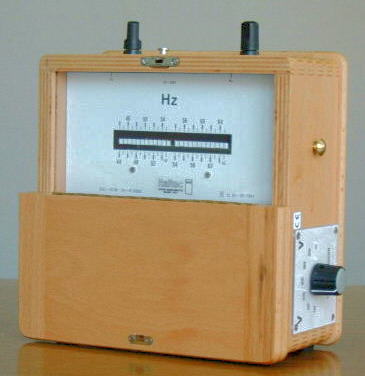

FC 2 Reed frequencymeter
25 reeds; - 54-66Hz;
Voltage: 110 - 160 - 220 - 300 - 380 -500V

FC 3 - Reed frequencymeter (twice reeds)
50 reeds; 44 - 56Hz e 54 - 66Hz;
Voltage: 110-160-220-300-380-500V

To page head

Electrodynamics Power Factor Meters
CodeModVoltageCurrentCosØ
LCOS1-1 Single Phase250 V2,5 / 5 A 0,5ind-1-0,5cap
LCOS1-2 Single Phase250 V2,5 / 5 A 0,2ind-1- 0,8cap
LCOS1-3 Single Phase250 V2,5 / 5 A 0,4ind -1- 0,4cap
LCOS3-1 Three Phase 380 V2,5 / 5 A 0ind - 1
LCOS3-2 Three Phase380 V2,5 / 5 A 0,2ind-1-0,8cap
LCOS3-3 Three Phase380 V2,5 / 5 A 0,5ind -1- 0,5cap;

To page head
