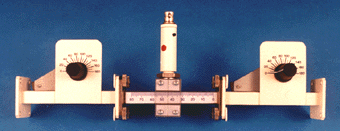

The Microwave Trainer is a WG16 waveguide-based trainer which enables students to investigate the principles of microwave transmission systems.

It is a package suitable for use in courses ranging from technician studies to degree level. Background theory and structured, stand-alone assigments are provided for:

• Basics of Frequency and Wavelength.
• Measurement of VSWR.
• Measurement of Microwave Power.
• Detector Characteristic.
• Measurement of Impedance.
• Microwave Tuner.
• Directional Coupler.
• Series and Shunt Tees.
• Horn Antenna - Microwave Propagation in Space.
• Doppler Radar.
• Use of Coaxial Cable.

The Microwave Trainer is a self-contained package with all components, power supplies, modulator and measuring equipment included.
