IT.0461-2

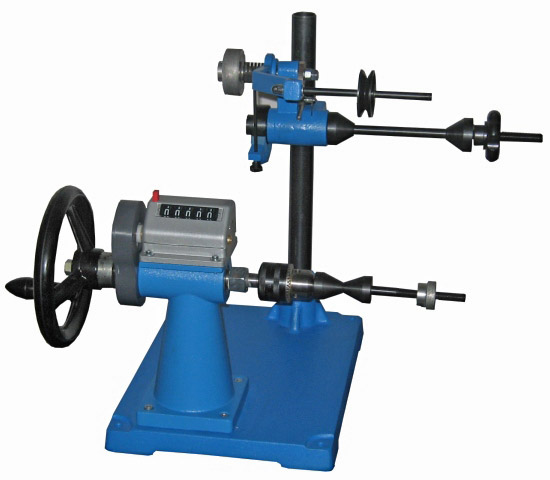

Winding machine for linear windings with wire guide  |
For linear winding without automatic wire guide. It is equipped with: n. 1 simple mechanical revolution counter with 5 figures n. 1 spindle from 1 to 10mm n. 1 bobbin holder T.N. for wires diam. mm. 0.10 - 0.40 n. 1 bobbin holder column n.1 winding shaft diam. mm. 10 complete with cones and nut Net weight: Kg. 8. Dimensions mm. 570x400x580 |
|---|
