Insulation Machine for PCB

IT.0210.CO
SINGLE - DOUBLE SIDE U.V.
EXPOSURE UNIT







U.V contact printer for the exposure of photosensitive material.
Especially designed for electronic applications, this unit allows to realise prototype or small series of printed circuit by using the method of the photoengraving in a short time.
suitable for the exposure of any type of photosensitive paint or pre sensitised boards, it allows also to obtain positive master from negative masters and viceversa.
To obtain printed circuits it is enough a master realised on drawing tracing paper.
It is possible to print also double sided circuits by exposing a side and then the other. The exposure is realised through 4 U.V. tubes 15W reared placed, and this make easy the positioning of the master on the circuit. The rubber cushion pressure system ensures a perfect contact between master and circuit.
The electronic timer enables to obtain time from 0 to 10 min.
This contact printer can be used without protective glasses because there is no vision contact between the user and the lighted tubes.
It is not necessary work in the dark.
    Technical characteristics
  • External dimensions 500 x 450 x 170mm
  • Exposure working area 255 x 385mm
  • Electromechanical timer, programmable from 0 to 15 minutes
  • 4 U.V. tube 15W
  • Pressure system with soft neoprene cushion
  • No maintenance
  • Microswitch to avoid vision contact between the user and the switched on tubes.
  • Voltage: 220V
  • Absorption: 80W
  • Weight: 13Kg

IT.0211.CO
SINGLE SIDE U.V.
EXPOSURE UNIT

  • External dimensions 485x600x160mm.
  • Exposure working area 255 x 385 mm.
  • Digital timer 3 digits
  • Vacuum control through vacuum gage
  • Exposure by means of 6 UV tubes 15W
  • Pressure system on masters with vacuum-air-pump.
  • Uniform exposure area.
  • Voltage 220V.
  • Absorption 130W.
  • Weight: 28kg

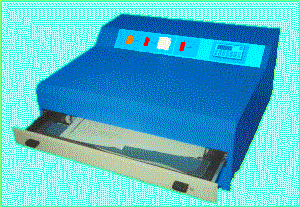

Compact contact printer with drawer
which saves space.
This unit is equipped with a vacuum pump that can be displayed on the vacuum gage.
Photoengraving is realised by means of
6 UV tubes 15W with speed reactors.
It includes a valve for a quickly depression.
Digital timer enables to program exposure time from 0 to 9998 sec.


IT.0212.CO
SINGLE SIDE U.V.
EXPOSURE UNIT
    Tecnical Specifications
  • External dimensions 760 x 600 x 180 mm.
  • Exposure working area 500 x 375 mm.
  • Digital timer
  • Programmable times from 0 to 10 minutes
  • Exposure through 6 U.V tubes 20W
  • Pressure system of the drawing on the boards with built-in vacuum-air-pump
  • Uniform exposure area
  • No vision contact between the user and lighted tubes
  • Voltage 220V
  • Absorption 300W
  • Weight: 32Kg
Single face contact printer, with built-in vacuum-air-pump, suitable for the exposure of photosensitive materials.
It is suitable for electronic applications and for graphic arts, and it allows to obtain circuits or masters on positive or negative film in a very short time, starting from a drawing.
The exposure takes place on the upper side, this make easy the positioning of the photosensitive boards.
The digital timer, which is programmable - in minutes and seconds - from 0 to 10 minutes, allows a more suitable selection of exposure times.
The inside pump, producing a very high vacuum, assures excellent definition of the details.
Finally, the vacuum can checked by the vacuum gage placed on the control panel.
This contact printer is provided with crystal upper plane fit for exposure of flat objects like C.S. boards or films.
It is equipped with a safety-switch on the door, which enables to light on the lamps n with closed door only, so that to avoid the vision contact between the operator and the lighted lamps.


Double face contact printer, supplied with vacuum-air-pump, for the exposure of photosensitive materials.
It has been designed for the realisation of double sided printed circuits by using the photoengraving system, but it may be used also as single side contact printer with the exclusion of lower lamps set through a suitable push-button on the control panel. The exposure drawer sliding frame makes it possible the save of space.
Upper and lower layers realised with soft transparent material, ultraviolet-proof, which assures a strictly identical exposure on both sides.
The inside pump, producing a very high-vacuum, assures excellent definition of the details.
The vacuum control is possible though a meter placed on the control panel.
The timer allows the time programming in seconds or minutes, from 0 to 10 minutes, enabling a more suitable selection of exposure.
IT.0213.CO
DOUBLE SINGLE SIDE U.V.
EXPOSURE UNIT
    Technical Specifications
  • Exposure working area 500 x 375 mm.
  • Exposure through 12 U.V. tubes 20W
  • Digital timer.
  • Uniform exposure area.
  • No vision contact between the operator and lighted tubes.
  • No maintenance.
  • External dimensions 635 x 600 x 290 mm.
  • Metal case, epoxy paint treated.
  • Voltage 220V.
  • Absorption 400W.
  • Weight: 37Kg
