E.M.M.S. 6 - Electrical Machines Modular System 3kW
 D.C. Machines

DC electrical machines characteristics :

  • Design: with typical industrial characteristics
  • Complete with base plate
  • Input/output with standard 4 mm safety sockets
  • Imprinted terminal boards with the synoptic
  • Two shaft ends on request
  • Cover for inspection of collector-brush area
  • Protection against thermal overload
  • With coupling cog for easy engagement with other machine
  • Manual explaining theory and practice for laboratory experiments included.

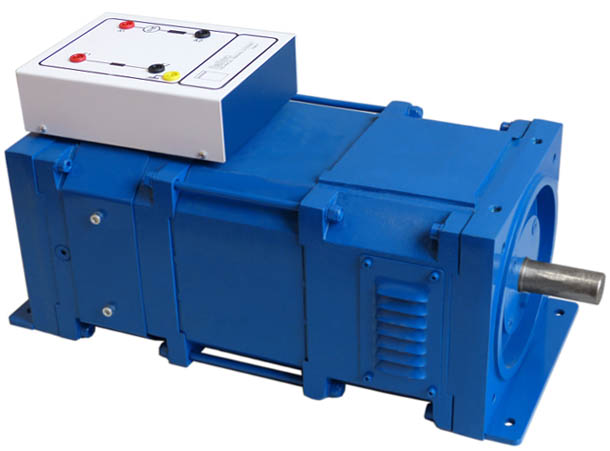

    • MOD.6140 D.C. Shunt Wound Machine
    Modes: Motor, self- and externally excited generator;
    Nominal voltage: 220V; Excitation voltage: 200V;
    Nominal speed 3000rpm;
    Nominal power: 3kW
    Dimensions: LxWxH: 40x33x29 cm;
    Weight: 29 kg;

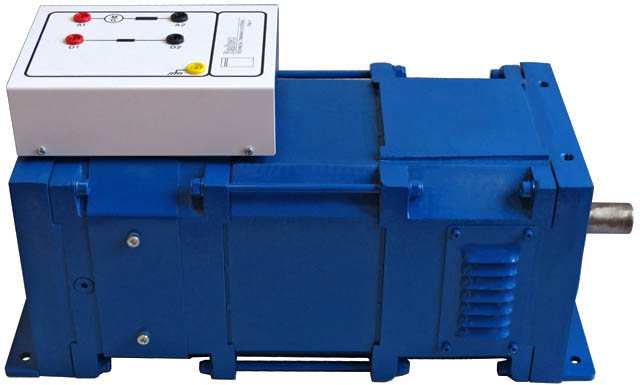

    MOD.6150 D.C. Series Wound Machine


    Modes: motor - generator;
    Nominal voltage: 220V;
    Nominal speed: 3000rpm;
    Nominal power: 3kW
    Dimensions: LxWxH: 40x33x29 cm;
    Weight: 29,5 kg;

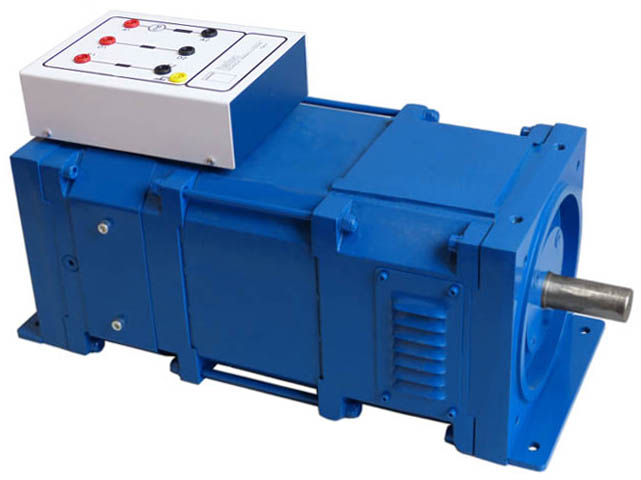

    MOD.6160 D.C. Compound Wound Machine


    Modes: Motor, self- and externally excited generator;
    Nominal voltage: 220V; Excitation voltage: 200V;
    Nominal speed: 3000rpm;
    Nominal power: 3kW
    Dimensions: LxWxH: 40x33x29 cm;
    Weight: 29 kg;

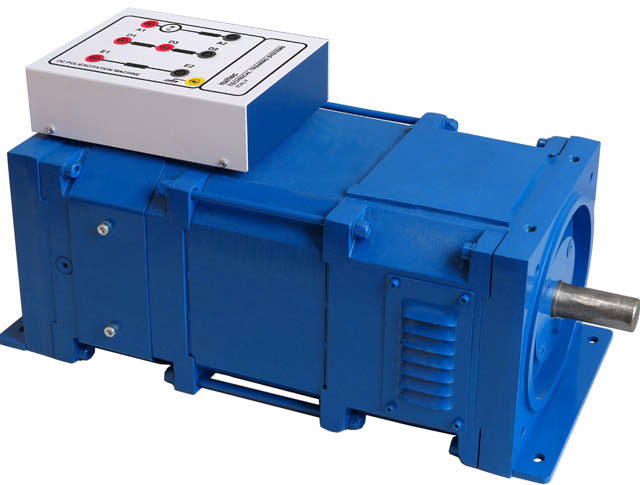

    MOD.6165
    DC Multi circuit Wound Machine

    Modes: Shunt wound motor/generator, series wound motor/generator; compound wound motor/generator
    Nominal voltage: 220V; Excitation voltage: 200V;
    Nominal speed: 3000rpm;
    Nominal power: 3kW
    Dimensions: LxWxH: 40x33x29 cm;
    Weight: 31 kg;

    No liabilities are given or implied for the specification and photographs printed in this page.
    Technical alteration reserved.
