Measure Current Transformers

For special types pls send e-mail request
CODEDETAILRANGE
TAR26Toroidal, Class 1, 5VA; hole diam. mm.26Primary from 100A to 600A
Secondary 1A - 5A
TAR26PWith Winded Primary, 3VA, Class 1;Primary from 5A to 50A
Secondary 1A 5A
TAWWinded primary Cl. 1 3VA;
Primary bar 30x3mm; Nut M12		Primary from 100A to 50A
Secondary 1A - 5A

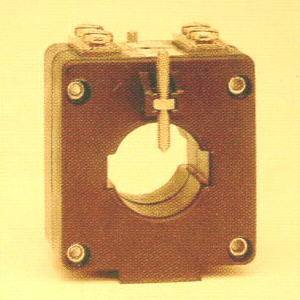

TA30Cl.1; 3VA; Primary bar 30x100mm;
Hole diam mm.28		Primary from 100 to 600A;
Secondary 1A - 5A
TA40Cl.1; 5VA; Primary bar 40x100mm;
Hole dia. mm. 30		Primary from 200 to 1000A;
Secondary 1A - 5A

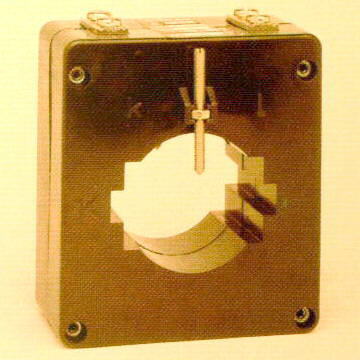

TA60Cl.1; 10VA; Primary bar 1x60x10 or 2x50x10;
Hole dia. 50 mm;		Primary from 200 to 2000A;
Secondary: 1A - 5A
TAS2Class 1; 10VA;
For primary bars of max 60x15mm		Primary from 200 to 1500A;
Secondary: 1A - 5A
TAS3Class: 1; 20VA;
For primary bars of max 103x60mm;		Primary from 800 to 3000A;
Secondary: 1A - 5A
Price in EURO - Ex works, packed for one sample
Pls require proforma invoice, special price according to the required quantity
TAR26 TAR26P TAW TA30 TA40 TA60 TAS2 TAS3
40,00 40,00 45,00 45,00 49,00 55,00 65,00 99,00
