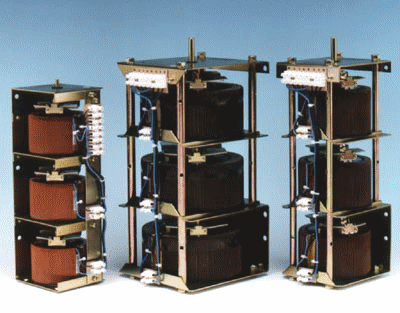

Three Phase Variable Transformers
(Industrial version for panel assembly) | italtec |
 |
Frequency range:
50 to 400 HzTest voltage:2,5kV (AC 50Hz) between metal and live parts Protection class:
I
(Protective earthing)
|
Input 400V
Output 0 - 400V | Input 400V
Output 0 - 450V |
Mass
(kg) |
Model |
| Type |
I (A) |
P (VA) |
Type |
I (A) |
P (VA) |
| HTG 400/1 |
1,0 |
690 |
HTG 450/0,8 |
0,8 |
624 |
4,85 |
3/M15 |
| HTG 400/1,25 |
1,25 |
861 |
HTG 450/1 |
1,0 |
780 |
| HTG 400/1,6 |
1,6 |
1104 |
HTG 450/1,4 |
1,4 |
1092 |
8,1 |
3/M30 |
| HTG 400/2 |
2,0 |
1380 |
HTG 450/1,6 |
1,6 |
1248 |
| HTG 400/2,5 |
2,5 |
1725 |
HTG 450/2 |
2,0 |
1560 |
| HTG 400/3 |
3,0 |
2070 |
HTG 450/2,5 |
2,5 |
1950 |
11,9 |
3/M50 |
| HTG 400/4 |
4,0 |
2760 |
HTG 450/3 |
3,0 |
2340 |
| HTG 400/4,5 |
4,5 |
3105 |
HTG 450/3,5 |
3,5 |
2730 |
15,1 |
3/M100 |
| HTG 400/6 |
6,0 |
4140 |
HTG 450/4,5 |
4,5 |
3510 |
| HTG 400/8 |
8,0 |
5520 |
HTG 450/6,3 |
6,3 |
4914 |
23,6 |
3/M200 |
| HTG 400/10 |
10,0 |
6900 |
HTG 450/8 |
8,0 |
6240 |
| HTG 400/12 |
12,0 |
8280 |
HTG 450/10 |
10,0 |
7800 |
29,8 |
3/M250 |
| HTG 400/18 |
18,0 |
12420 |
HTG
450/15 |
15,0 |
11700 |
42,0 |
3/M300 |
| HTG 400/23 |
23,0 |
15870 |
HTG
450/20 |
20,0 |
15600 |
48,0 |
3M400 |
|
HTG 400/32
|
32,0 |
22020 |
HTG
450/30 |
30,0 |
23400 |
75,0 |
3/M500 |
Special model
on request |
Special voltage
on request |
Special dimensions
on request |
