LABORATORY VARIABLE RESISTORS
|

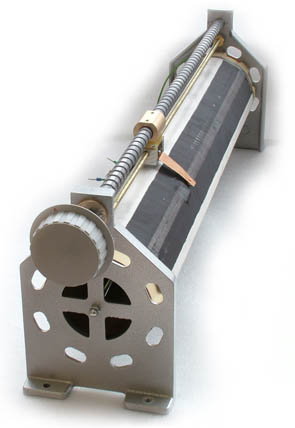

RC linear rheostats are made up of one or more cylindrical pipes in porcelain, on which the resistive alloy wire is wound and of one or more contacts sliding on the winding along cylinders generators moved via a knob or otherwise.
They are simple, robust and easy to be used and connected.
They offer an infinite range of applications, mainly in laboratories, each time there is the need of adjusting voltages or currents.
A long experience in the field has allowed for the best.
Choice of materials: the special porcelain cylindrical pipe offers a high mechanical and thermal shock resistance; the resistive alloy is generally costantan with a neglectable temperature coefficient, supporting plates and protection sheets are oven painted at a high temperature thus guaranteeing colour permanence and life.
Rheostat can be supplied respectively with six or nine output terminals.
|
Single Phase & Three Phase Laboratory Linear Rheostat
|
Code |
valore
value
valeur
Ohm |
corrente
current
courant
Amp. |
potenza
power
puissan.
Watt |
| 160/320 |
| R160-00-1R |
0-1 |
13 |
160 |
| R160-10-3R3 |
0-3,3 |
7 |
160 |
| R160-20-10R |
0-10 |
4 |
160 |
| R160-30-33R |
0-33 |
2,2 |
160 |
| R160-40-100R |
0-100 |
1,25 |
160 |
| R160-50-330R |
0-330 |
0,7 |
160 |
| R160-60-1k |
0-1k |
0,4 |
160 |
| R160-70-3k3 |
0-3,3k |
0,22 |
160 |
| 340/680 |
| R320-00-1R |
0-1 |
18 |
320 |
| R320-10-3R3 |
0-3,3 |
10 |
320 |
| R320-20-10R |
0-10R |
5,7 |
320 |
| R320-25-20R |
0-20 |
3,58 |
320 |
| R320-26-25R |
0-25 |
4 |
320 |
| R320-30-33R |
0-33 |
3,1 |
320 |
| R320-35-50R |
0-50 |
2,53 |
320 |
| R320-40-100R |
0-100 |
1,8 |
320 |
| R320-45-210R |
0-210 |
2,53 |
320 |
| R320-50-330R |
0-330 |
1 |
320 |
| R320-52-400R |
0-400 |
0,9 |
320 |
| R320-54-650R |
0-650 |
0,7 |
320 |
| R320-60-1k |
0-1K |
0,57 |
320 |
| R320-70-3K3 |
0-3,3K |
0,31 |
320 |
| R320-80-10k |
0-10K |
0,18 |
320 |
| - |
- |
- |
- |
| 3Phase |
| RT320-00-1R |
3x 0-1 |
3x 18 |
3x 320 |
| RT320-10-3R3 |
3x 0-3,3 |
3x 10 |
3x 320 |
| RT320-20-10R |
3x 0-10 |
3x 5,7 |
3x 320 |
| RT320-30-33R |
3x 0-33 |
3x 3,1 |
3x 320 |
| RT320-40-100R |
3x0-100 |
3x 1,8 |
3x 320 |
| RT320-50-330R |
3x0-330 |
3x 1,1 |
3x 320 |
| RT320-60-1k |
3x 0-1k |
3x 0,57 |
3x 320 |
| RT320-70-3k3 |
3x 0-3k3 |
3x 0,31 |
3x 320 |
| RT320-80-10k |
3x0-10k |
3x 0,18 |
3x 320 |
|
| Code |
valore
value
valeur
Ohm |
corrente
current
courant
Amp. |
potenza
power
puissan.
Watt |
| 640/1280 |
| R640-00-0R5 |
0-0,5 |
36 |
640 |
| R640-10-1R6 |
0-1,6 |
20 |
640 |
| R640-20-5R |
0-5 |
11,4 |
640 |
| R640-21-11R5 |
0-11,5 |
7,46 |
640 |
| R640-30-16R5 |
0-16,5 |
6,2 |
640 |
| R640-31-23R4 |
0-23,4 |
5,23 |
640 |
| R640-32-33R |
0-33 |
4,4 |
640 |
| R640-40-50R |
0-50 |
3,6 |
640 |
| R640-50-165R |
0-165 |
2 |
640 |
| R640-55-200R |
0-200 |
1,8 |
640 |
| R640-56-325R |
0-325 |
1,4 |
640 |
| R640-60-500R |
0-500 |
1,1 |
640 |
| R640-65-1K |
0-1k |
0,8 |
640 |
| R640-70-1K65 |
0-1,65k |
0,63 |
640 |
| R640-80-5K |
0-5k |
0,36 |
640 |
| 960/1900 |
| R960-00-0R33 |
0-0,33 |
54 |
960 |
| R960-10-1R1 |
0-1,1 |
30 |
960 |
| R960-15-3R |
0-3 |
19 |
1200 |
| R960-20-3R3 |
0-3,3 |
17 |
960 |
| R960-30-11R |
0-11 |
9,3 |
960 |
| R960-40-33R |
0-33 |
5,4 |
960 |
| R960-50-110R |
0-110 |
3 |
960 |
| R960-60-333R |
0-333 |
1,7 |
960 |
| R960-70-1K1 |
0-1,1k |
0,98 |
960 |
| R960-80-3K33 |
0-3,33k |
0,54 |
960 |
| 1600/3300 |
| R3300-00-4R5 |
0-4,5 |
27 |
3300 |
| R3300-10-10R |
0-10 |
18 |
3300 |
| R3300-20-50R |
0-50 |
8 |
3300 |
| R3300-30-100R |
0-100 |
5,8 |
3300 |
| R3300-40-330R |
0-330 |
3,2 |
3300 |
| R3300-50-500R |
0-500 |
2,8 |
3300 |
| R3300-60-1k |
0-1k |
1,8 |
3300 |
|

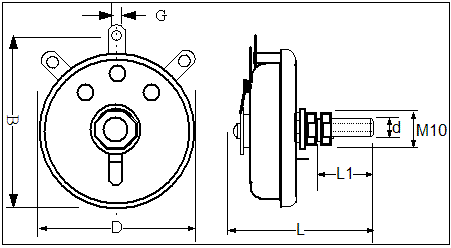

Single Phase & Three Phase Laboratory Thoroidal Rheostat
| |
Rheostats from 25W to 500W
Resistance value and load current can be made according to customer's application and need.
Rheostat size may vary depending on the resistive ohmic value and the current required
Code
|
Resistance
ohm
|
Power
Watt
|
-
|
Dimensions in mm +/-1mm
|
|
D
|
B
|
L
|
L1
|
d
|
G
|
|
RT-25W
|
0-5000
|
25
|
-
|
45
|
50
|
60
|
25
|
6
|
2
|
|
RT-50W
|
0-5000
|
50
|
-
|
65
|
70
|
64
|
25
|
6
|
2
|
|
RT-100W
|
0-5000
|
100
|
-
|
85
|
93
|
66
|
35
|
6
|
4
|
|
RT-150W
|
0-5000
|
150
|
-
|
105
|
120
|
73
|
35
|
6
|
4
|
|
RT-300W
|
0-5000
|
300
|
-
|
158
|
170
|
115
|
55
|
10
|
4
|
|
RT-500W
|
0-5000
|
500
|
-
|
208
|
215
|
122
|
65
|
10
|
4
|

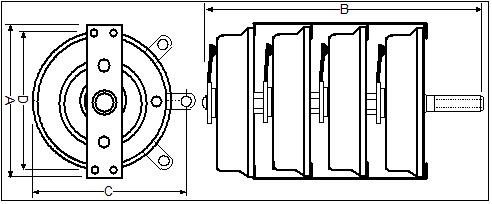

Tandem mounted Rheostats : up to 3Kw
Resistance value and load current can be made according to customer's application and need.
Rheostat size may vary depending on the resistive ohmic value and the current required
Code |
Resistance
ohm
|
Power
Watt
|
-
|
Dimensions in mm +/-1mm
|
|
A
|
D
|
C
|
B
|
|
RT2-500W
|
0-5000
|
1000
|
-
|
216
|
196
|
219
|
200
|
|
RT3-500W
|
0-5000
|
1500
|
-
|
216
|
196
|
219
|
300
|
|
RT4-500W
|
0-5000
|
2000
|
-
|
216
|
196
|
219
|
400
|
|
RT5-500W
|
0-5000
|
2500
|
-
|
216
|
196
|
219
|
500
|
|
RT6-500W
|
0-5000
|
3000
|
-
|
216
|
196
|
219
|
600
|
