Kit for 1PH & 3PH motor assembly


IT.0452.EM
Kit for the construction of 1 Ø Motor.
It includes all parts, magnetic circuits, insulating material, mechanical parts and several accessories, to realise a single phase motor. Manual with theory and calculation is also provided.
Motor power: 0,75Hp; Speed:3000rpm;

IT.0450.EM
Didactic kit to assembly a 3 Ø Motor.
It includes all parts, magnetic circuits, insulating material, mechanical parts and several accessories, to realise a three phase motor.
Manual with theory and calculation is also provided.
Motor power: 0,75 Hp; Speed:3000rpm;
IT.0454.EM
Kit for instructions in design and assembly of three phase asynchronous induction motor in four versions depending upon the kind of statoric winding that has been used.

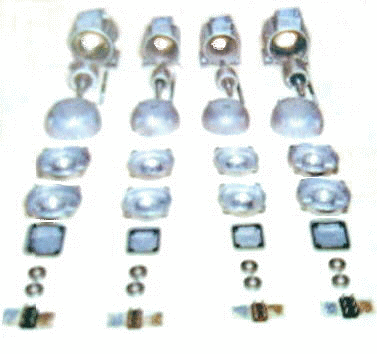

IT.0454.EM composition
It includes magnetic circuits, insulating material, mechanical parts, to realise the motors.

3PH 2 poles motor 0,5kVA - 230/400V, 50Hz;
3PH 4 poles motor 0,5kVA - 230/400V, 50Hz;
3PH 6 poles motor 0,75kVA - 230/400V, 50Hz;
3PH 8 poles motor 0,75kVA - 230/400V, 50Hz;

- 4 stator casing
- 4 squirrel cage rotor with shaft and bearings

- 8 shields
- 4 fan with housing
- 4 terminal block with terminal, related cover and fixtures
- 4 set of statoric winding of four different kind.

Manual with theory and calculation is also provided.
