E.M.M.S. Electrical Machines Modular System 0,3 kW
  Measure Modules
MOD.3200

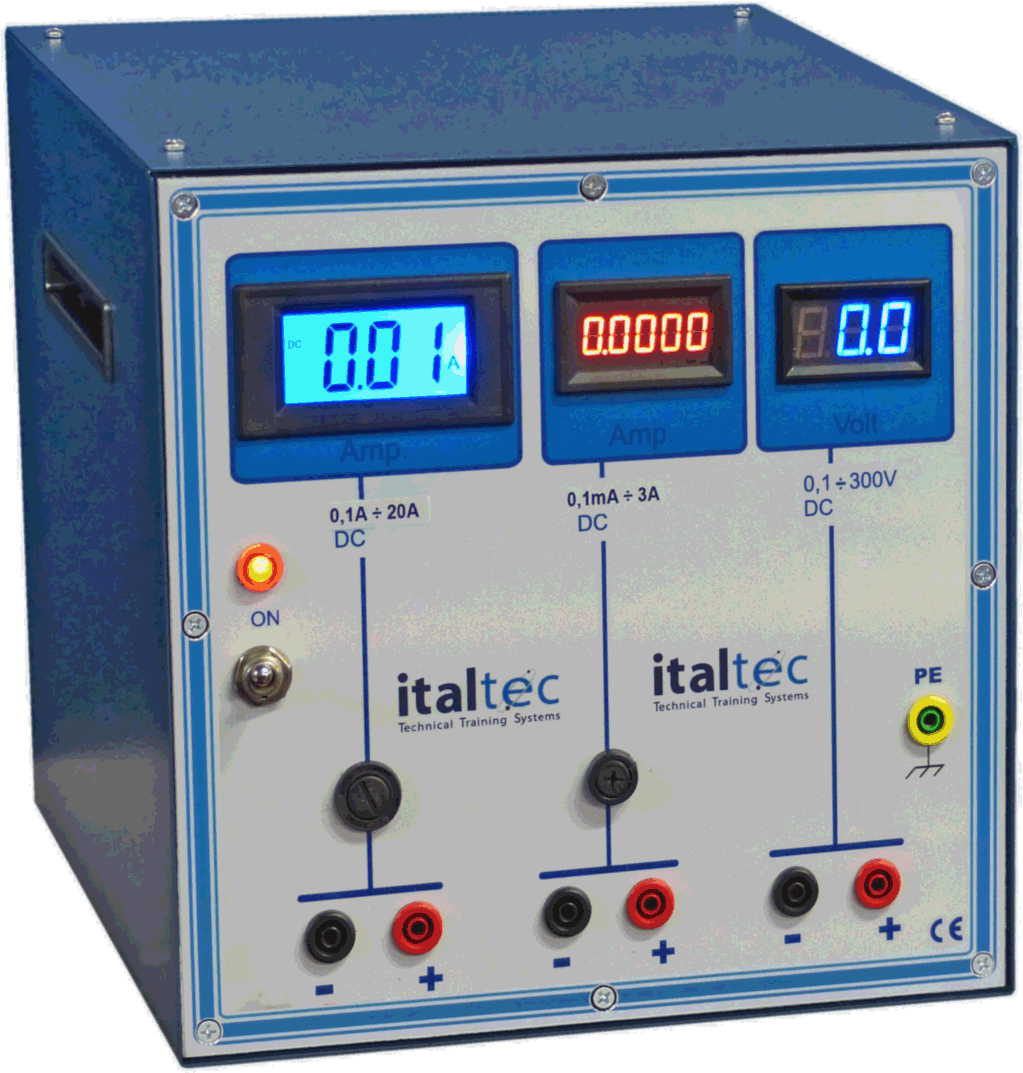

DC Volt-Ammeter Module
This module includes three separate multirange meters for d.c. and a.c. voltage measurements.
Measure range:
DC voltmeter: 50-150-250V;
DC milliammeter 150/300/600mA)
DC ammeter: 0,5-1-2A; Accuracy: 2%;
Accuracy: 1%
Dimensions: LxWxH: 25x25x15cm Weight: 4kg.
MOD.3202

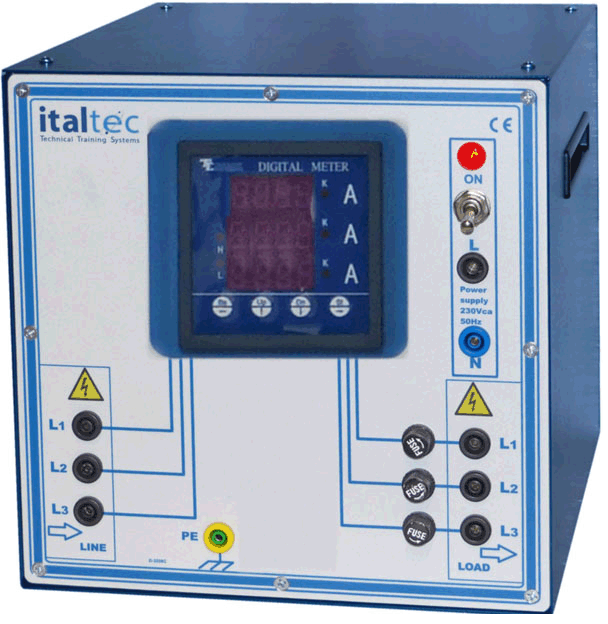

AC Ammeter Module
This module includes three separate multirange ammeters for a.c. measurement.
Measure range:
0-1A; 0-5A; 0-10A;
Accuracy: 1%
Dimensions: LxWxH: 25x25x15cm
Weight: 4kg.
MOD.3204
AC Voltmeter Module
This module includes three separate multirange a.c. voltmeter.
Measure range:
- 50-250-500V;
Accuracy: 1%;
Dimensions: LxWxH: 25x25x15cm
Weight: 4kg.
MOD. 3205
Reactive Power Meter
This module includes one Reactive Power Meter for measurements from 0 to 400VAr
Power range: 0-400VAr;
Preacute;cision: 2%;
Voltage range: 400 V;
Current range: 0,5-1 A;
Accuracy: 1%
Dimensions: LxPxH: 25x24x15 cm;
Weight: 4 kg.

MOD.3206
Single Phase Power Meter
This module includes one power meter for measurements in d.c. or in a.c. single phase circuits from 0 to 500W
Power range: 0-500W;
Measure range:
Max Voltage: 50-250-500V;
Max current: 0,5 - 1A;
Accuracy: 1%;
Dimensions: LxWxH: 25x25x15cm
Weight: 4kg.

Mod.3207
Three Phase Power Factor Meter
Measure range:
-Voltage: 380V;
-Current: 2A;
-Accuracy: 1%
Dimensions: LxWxH: 25x25x15cm
Weight: 4kg.

Mod.3207-M
Single Phase Power Factor Meter
Measure range:
-Voltage: 250V;
-Current: 2A;
-Accuracy: 1%
Dimensions: LxWxH: 25x25x15cm
Weight: 4kg.

MOD.3208

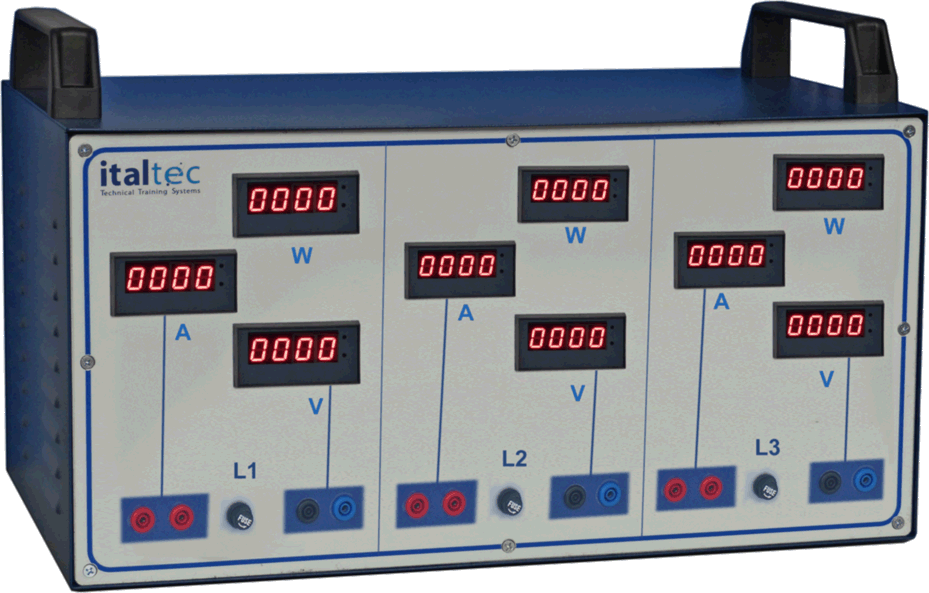

Three Phase/Single Phase Power Meter
This module includes two separate power meters for 3-phase power measurements in the range 0-500W.
Meters can be independently used to measure the dc or single phase ac power.
Characteristics of both meters:
-Voltage:50-250-500V a.c or d.c.;
-Current: 0,5-1A f.s.;
Accuracy: 1%
Dimensions: LxWxH: 25x25x15cm
Weight: 4kg.


MOD.3209
3PH Digital Net Analyser

Range:
0-600V; 0-10A;
Active & Reactive Power
It measure: AC voltage, AC current,
Active & Reactive power,
Power factor,
Frequency up 400Hz,
Energy
Dimensions: LxWxH: 25x25x15cm
Weight: 5kg.


MOD.4209-A
Three phase network analyser with RS232 and management software

--> Analyser details

--> Software details 		3 Voltage L-L et L N for each phase: 500 V
3 Current I1, I2 I2 per phase, 10 A
- (any current with additional TA)
Active, reactive & apparent power
Active, reactive & total energy counters
Frequency up to 100Hz
Power factor +/- 1.00
Possible contemporary readings with software:
48 analogue and digital pages with Max e min;
48 bargraph indications with Max, min and alarms
72 graphic channel recorders
Accuracy 0,5%.
Dimensions: LxPxH: 25x25x15 cm;
Weight: 4,2 kg.

MOD.4209-C
Three phase network analyser with RS232 and management software

--> Analyser details

--> Software details 		3 Voltage L-L & L N for each phase: 600 V
3 Current I1, I2 I2 per phase, 10 A
- (any current with additional TA)
Active, reactive & apparent power
Active, reactive & total energy counters
Frequency up to 100Hz
Power factor +/- 1.00
Possible contemporary readings with software:
48 analogue and digital pages with Max e min;
48 bargraph indications with Max, min and alarms
72 graphic channel recorders
32 channel for harmonic visualisation up 31th
24 channel for waveform visualisation (oscilloscope)
Accuracy 0,5%.
Dimensions: LxPxH: 25x25x15 cm;
Weight: 4,2 kg.

MOD.3210

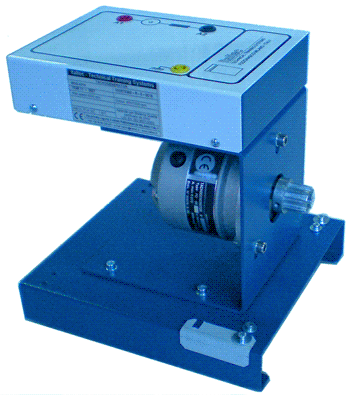

Electric Tachogenerator
This tachogenerator can be used for speed measurements up to 5,000 rpm on continuous operation or 10,000 rpm on intermittent operation.
It is complete with high-impedance meter with directly rpm reading;
Output:
- 60V for 1000rpm into a 1Mohm;
- voltage/speed linearity error better than 1% up to 5.000 rpm
Dimensions: LxWxH: 25x25x15cm
Weight: 4kg.
Mod.3211

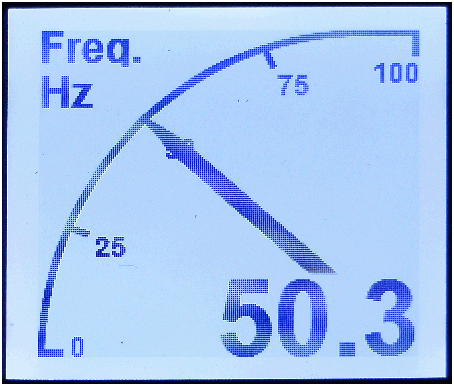

Frequency Meter Module
Range: 45-65Hz
Voltage 0-500V c.a.
Accuracy: 1%

Dimensions: LxWxH: 25x25x15cm
Weight: 4kg.
