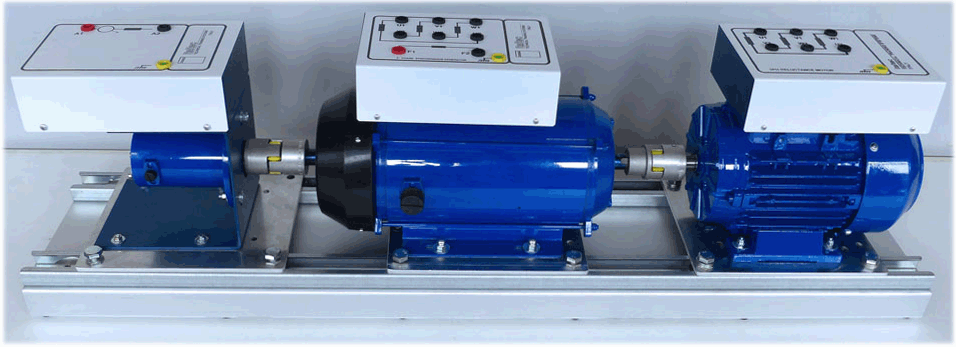

E.M.M.S. Electrical Machines Modular System 0,3 kW
A.C. Machines &
Transformers |
EMMS Machine details
|
|---|
MOD.3040 3-Phase Squirrel
Cage Motor
250W
 |
Design: with typical industrial characteristics, complete with base plate.
Nominal voltage: 230/400V; delta/star / 50Hz;
Nominal speed: 2840rpm;
Nominal power: 0,25kW;
Dimensions: LxWxH: 35x18x19 cm;
Weight: 7,0 Kg; |
|---|
MOD.3050 3-phase Slip Ring
Asynchronous Motor
200W;
 |
Design: with typical industrial characteristics, complete with base
plate.
Nominal voltage: 220/380V (delta/star) / 50Hz;
Nominal speed: 2800rpm;
Nominal power: 0,2kW;
Dimensions: LxWxH: 35x18x19 cm;
Weight: 9,5 Kg
|
|---|
MOD.3060 3-Phase Dahlander Motor
2/4 Poles 200/300W
 | Design:
Industrial, complete with base plate.
Nominal voltage: 380V (delta/ star-star) / 50Hz;
Nominal speed: 1380/2780 rpm;
Nominal power: 0,18 / 0,24
kW;Cos phi: 0,62 / 0,73
Dimensions: LxWxH: 35x18x19 cm;
Weight: 8,0 Kg
|
|---|
MOD.3065 3-Phase motor 2/4 Poles
Two separate windings 300W
 | Design:
Industrial, complete with base plate.
Nominal voltage: 380V (star/star) / 50Hz;
Nominal speed:1380/2750rpm;
Nominal power: 0,15/0,28kW;
Dimensions: LxWxH: 35x18x19 cm;
Weight: 8,0 Kg
|
|---|
MOD.3070 Three Phase
Synchronous Generator
0,25kVA
 | Design:
Industrial, salient pole rotor; complete with base plate.
Modes: motor, generator
Nominal voltage: 220/380V/50Hz (delta/star)
Excitation voltage: 210V;
Nominal speed: 3000rpm;
Nominal power: 0,25kVA; Cos phi: 1
Dimensions: LxWxH: 35x18x19 cm;
Weight: 10 kg
|
|---|
MOD.3074 Three Phase
Synchronous Generator
0,25kVA
| Design:
Industrial, non-salient pole rotor; complete with base plate.
Modes: motor, generator
Nominal voltage: 220/380V/50Hz (delta/star)
Excitation voltage: 200V;
Nominal speed: 3000rpm;
Nominal power: 0,25kVA; Cos phi: 1
Dimensions: LxWxH: 35x18x19 cm;
Weight: 10 kg
|
|---|
MOD.3072 Single Phase
Synchronous Generator
0,2kVA
 | Design:
Industrial, non-salient pole rotor; complete with base plate.
Nominal voltage: 220V a.c.;
Exciting voltage: 200V d.c.
Speed: 3000rpm;
Nominal power: 0,2kVA; Cos phi: 1
Dimensions: LxWxH: 35x18x19 cm;
Weight: 8,0 Kg
|
|---|
MOD.3080 3-phase
Reluctance Motor 200W
 | Design:
Industrial, complete with base plate.
Nominal voltage: 220V/380V (delta/star) / 50Hz
Nominal speed: 3000rpm;
Nominal power: 0,37kW; Cos phi: 0,37
Dimensions: LxWxH: 35x18x19 cm;
Weight: 12 kg
|
|---|
MOD.3090 Single Phase a.c.
Capacitor Run Motor 300W
 | Design:
Industrial, complete with base plate.
Nominal voltage: 230V a.c.;
Speed: 2800rpm;
Power: 0,250W
Cos phi: 0,99
Dimensions: LxWxH: 35x18x19 cm;
Weight: 12 Kg
|
|---|
MOD.3100 Single Phase
Repulsion Motor 200W
 | Design:
Industrial, complete with base plate.
Motor with infinitely variable speed in both direction
Nominal voltage: 220V single-phase; 50Hz;
Nominal speed: +3000/0/-3000rpm;
Nominal power: 0,20kW; Cos phi: 0,85
Dimensions: LxWxH: 35x18x19 cm;
Weight: 9,5 Kg
|
|---|
MOD.3110 Single Phase A.C.
Split Motor 300W
 | Design:
Industrial, complete with base plate.
Ac motor with bifilar winding.
Design:
Industrial, with start-up relay, complete with base plate.
Nominal voltage: 220V a.c. 1-phase; 50Hz;
Nominal speed: 2880rpm;
Nominal power: 0,37 kW; Cos phi: 0,73
Dimensions: LxWxH: 35x18x19 cm;
Weight: 9 Kg
|
|---|
MOD.3120
Single Phase
Induction Motor
Capacitor Start/Induction Run 300W
 | Design:
Industrial, with starting relay, complete with base plate.
Nominal voltage: 220V a.c. single-phase/50Hz;
Speed: 2815 rpm;
Nominal power: 0,3 kW; Cos phi: 0,94
Starting capacitor: 16 uF;
Dimensions: LxWxH: 35x18x19 cm;
Weight: 8,5 Kg
|
|---|
MOD.3130 Universal Motor
220W
 | Design:
Industrial, complete with base plate.
Modes: DC & AC motor/generator, series Nominal voltage: 220V;DC/AC
Nominal speed: 3000rpm; Cos Ø: 0,6
Nominal power: 0,22kW
Coupling type: Cog coupling;
Inputs/Outputs: 4 mm safety sockets;
Unit type: table-top unit;
Dimensions: LxWxH: 35x18x19 cm;
Weight: 9,5 kg
|
|---|
Transformers are used in all power classes both in industry and in domestic
appliances. They are used for the conversion of voltages and current. The
training system is based on transformers with a power rating of 300 VA. Training
topics covered:
- Complete and simplified equivalent circuits; measurement of the individual
variables
- Transformation of current and voltage
- Measuring the rush current using an oscilloscope
- Measurement and calculation of the no-load values
- Measurement and calculation of the short-circuit values
- Measurements with a variable load R, L & C
- Determining the efficiency
- Evaluating the measured values
- Phase angle between primary and secondary windings and the effect of
asymmetric loading in the circuit groups Yy, Yd, Yz, Dy
|
 |
MOD.3190 Single Phase Transformer
Primary and secondary windings are divided in several sections
to allow many possibilities of connections.
220/110V primary/secondary.
Primary: 2x110V ac;
Secondary: 2x55V ac;
Power: 300VA; Frequency: 50-60Hz;
Dimensions: LxWxH: 55x25x15 cm;
Weight: 4kg;
|
|---|
 | MOD.3195 Three-phase Transformer
Three phase transformer realised in didactical version.
Each primary and secondary windings are divided in two sections to allow many possibilities of connection including zig-zag.
Primary:400V (3x2x115V)
Secondary: 230V (3x2x66,5V)
Power: 300VA; Frequency 50/60Hz;
Dimensions: LxWxH: 25x25x15 cm;
Weight: 5kg.
|
|---|
