E.M.M.S. Electrical Machines Modular System 0,3 kW
 R - L - C Loads

R.L.C. STEPS VARIABLE LOADS


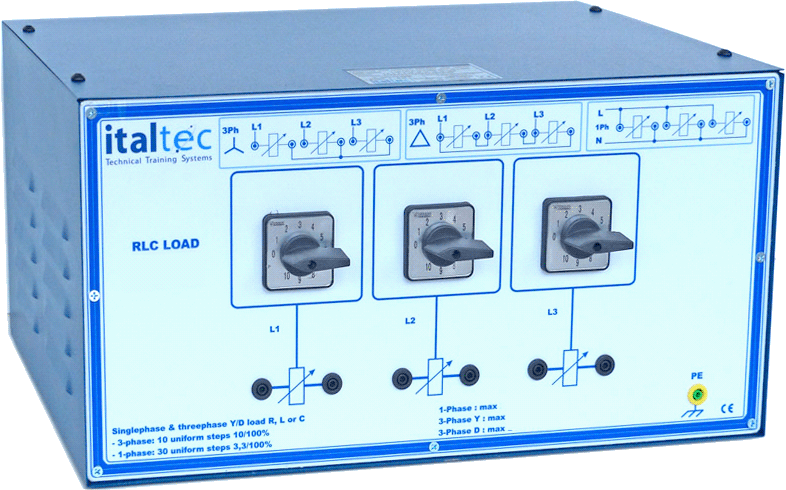

MOD.3020-R
Resistive Load Module

Module fitted with 9 resistors in three identical groups to realise balanced or unbalanced 3-phase loads (star and delta) and single phase loads.
Each phase can be independently varied in 7 uniform steps from 0 to max current value for full power. Single phase connection provides 21 regulation steps.
Power variation: 0-100%; Duty cycle: 100%;
Input/Outputs: 4 mm CE safety sockets
Unit type: Table top / frame unit;
Dimensions: LxWxH: 25x25x15cm. Weight: 2,5 kg;


MOD.3021-R
Like Mod.3020-R but provides 20 balanced steps (5%-10%-15%-20%-25%-30% up to 100%) Monophase or Three-phase.








MOD.3020-L
Inductive Load Module

This is a module fitted with 9 inductors in three identical groups to realise balanced or unbalanced 3-phase loads (star and delta) and single phase loads.
Each phase can be independently changed in 7 uniform steps from 0 to max current value of full load.
Single phase connection provides 21 regulation steps.
Power variation: 0-100%; Duty cycle: 100%;
Input/Outputs: 4 mm CE safety sockets
Unit type: Table top / frame unit;
Dimensions: LxWxH: 25x25x15cm. Weight: 4,5 kg;


MOD.3021-L
Like Mod.3020-L but provides 20 balanced steps (5%-10%-15%-20%-25%-30% up to 100%) Monophase or Three-phase.

MOD.3020-C
Capacitive Load Module

This is a module fitted with 9 capacitors in 3 identical groups to realise balanced or unbalanced 3-phase loads (star and delta) and single phase loads.
Each phase can be independently changed in 7 uniform steps from 0 to max current value of full load.
Single phase connection provides 21 regulation steps.
Power variation: 0-100%; Duty cycle: 100%;
Input/Outputs: 4 mm CE safety sockets
Unit type: Table top / frame unit;
Dimensions: LxWxH: 25x25x15cm. Weight: 1,9 kg;


MOD.3021-C
Like Mod.3020-C but provides 20 balanced steps (5%-10%-15%-20%-25%-30% up to 100%) Monophase or Three-phase.





CONTINOUSLY VARIABLE LOADS


MOD.3016-R
Load resistor for 300W d.c. generators

Resistance: 10% - 100% continuously variable;
Nominal power: 30W - 300W continously variable;
Input/Outputs: 4 mm CE safety sockets
Unit type: Table top / frame unit;
Dimensions: LxWxH: 25x25x15cm. Weight: 1,3 kg;





MOD.3018-R
Load resistor continuously variable 300W

Resistance: 3 x 10% - 100% continuously variable;
Power: 30W to 300W continously variable;
Duty cycle: 100%
Input/Outputs: 4 mm CE safety sockets
Unit type: Table top / frame unit;
Dimensions: LxWxH: 25x25x15cm. Weight: 2,5 kg;
