Winding Machines


Motors Winding Machines
Winding machines for electric motor skein and rotor windings

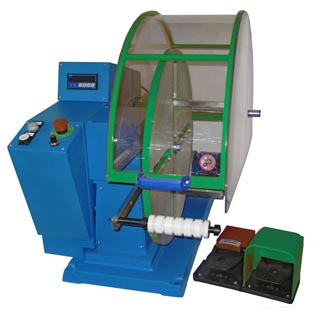

IT.0467-1



PDF

Winding machines for electric motor skein

N.1 Three-phase motor with included clutch
N.1 Presetting mechanical adding revolution counter with 5 figures with lever for last replacement to zero and for restatement of the already decided number.
N.1 Pairs of square mandrels.
N.2 pairs of arbors dia. 40 & 80 mm with 6 slot.
N.1 Faceplate diam. mm 500.
Aluminium frame.
Optional concentric arbors
Optional control unit with microprocessor
Voltage 220/380V; 50-60Hz;
Weight: 80Kg.
Dimensions mm 660 x 810 x740

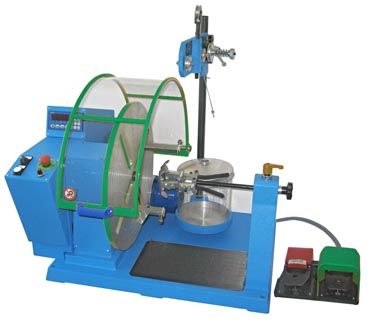

IT.0467-7




PDF
Winding machines for electric motor skein and rotor windings

N.1 Three phase motor with incorporated clutch
N.1 Electronic counter with microprocessor which allow to store more programs.
N.1 Bobbin-holder type TC/RFR complete with column and box dia. mm 220.
N.1 Faceplate dia. mm 400 with 4 slits;
N.2 Struts for rotor fixing;
N.1 Plier with fast locking and turning jaws;
N.1 Safety guard according CE rules;
Aluminium frame.
Optional concentric arbors
Optional control unit with microprocessor
Voltage 220/380V; 50-60Hz;
Weight net: 155Kg.
Dimensions mm 830 x 620 x 1300



Transformers Winding Machines
Layer winding machine to produce low voltage transformer, coil, electromagnet and linear windings

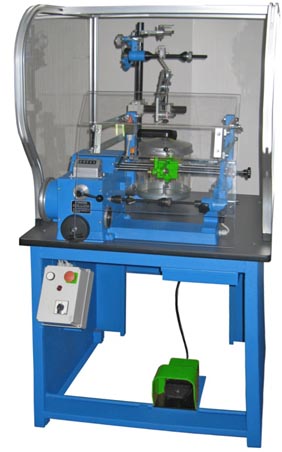

IT.0460-1






PDF

For wires from Ø mm 0,06 to mm 1,40;
Max diameter of bobbins mm 180
Minimal length of bobbins mm 5 max mm 190;
Winding spindle Ø mm. 10
Distance between centres mm 250;
Single phase 220V motor 180W with electronic rheostat
2 winding speeds 1400 and 3000 rpm 2 speed gear
Mechanical reversal: automatic or hand reversal;
Standard clockwise rotation (optional c-clockwise on request)
Power supply : 380/400V, 50/60 Hz, 1,2 kW

Standard accessories:
  • N.1 Bobbin-holder THR/R for wires Ø mm 0,30 to 2
  • N.1 Bobbin-holder TC for wires Ø mm 0,05-0,20
  • N.1 Special bobbin-holder column
  • N.1 Single phase motor 220V with electronic rheostat
  • N.1 Table with drawer of steel-sheet
  • N.1 Mechanical revolution counter with 5 digit.
  • Weight: net: 110Kg
  • Dimensions mm 900 x 920 x 1630
Optional accessories:
  • Wire guide for simultaneus winding of several bobbins.
  • Digital preset counter with brake
  • Control unit with Microprocessor and possibility to store programs.
  • IT.0460-2






    PDF
    For wires from Ø mm 0,16 to mm 5,0;
    Max diameter of bobbins mm 300
    Minimal length of bobbins mm 5 max mm 220;
    Winding spindle Ø mm. 14
    Distance between centres mm 300;
    Single pahse motor included with protective crankase
    4 winding speeds 217-390-800-1380 rpm;
    2 speed gear
    Mechanical reversal: automatic or hand reversal;
    Standard clockwise rotation (optional c-clockwise on request)
    Power supply : 380/400V, 50/60 Hz, 1,2 kW

    Standard accessories:
    • N.1 Bobbin-holder THR/R for wires Ø mm 0,20 to 1,00;
    • N.1 Bobbin-holder TC for wires Ø mm 0,05-0,20
    • N.1 Bobbin-holder column
    • N.1 Three phase motor 220/380V 0,88kW with incorporated clutch
    • N.1 Table with drawer of steel-sheet
    • N.1 Mechanical revolution counter with 5 digit.
    • Weight 125 Kg
    • Dimensions mm 800 x 800 x 1600
    Optional accessories:
  • Wire guide for simultaneus winding of several bobbins.
  • Digital preset counter with brake
  • Microprocessor control unit.
  •
    IT.0461-3



    PDF

    Winding machine for linear windings without automatic wire guide
  • N.1 Simple mechanical revolution counter with 5 figures
  • N.1 Spindle from 1 to 13 mm
  • N.1 Winding shaft diam. mm 10 complete with cones and nuts;
  • N.1 Single phase motor anr rheostat 175W 220V.
  • N.1 Safety guard
  • Aluminium base
  • Weight net: 13Kg
  • Dimensions mm 450 x 400 x 580
    Optional accessory:
  • N.1 Bobbin holder TN for wires diam. mm 0,10-0,40
  • N.1 Bobbin holder column

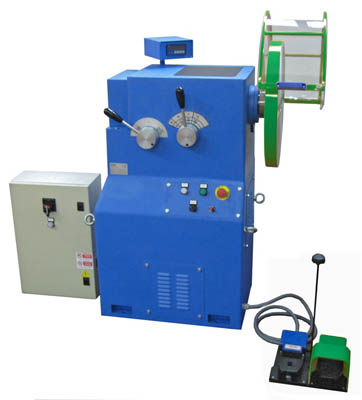

  • IT.0467-2


    PDF

    Machine to produce low and medium voltage transformer, coils, electromagnet and motor windings.
  • Max coil diameter : 1900 mm
  • Max coil lenght: 300 mm
  • Max torque : 650 kgm
  • Speed : 0-:-373 rpm
  • Motor : 4 HP
  • Inverter with electronic foot-pedal
  • Digital preset counter
  • Electromagnetic brake
    Optional accessories:
  • Vice to grip transformer core
  • Set of straight and concentric arbors
  • Control unit with Microprocessor and possibility to store programs.




  • For any request please send an e-mail to italtec or fax to the N. +39 02 90 720 227.-
