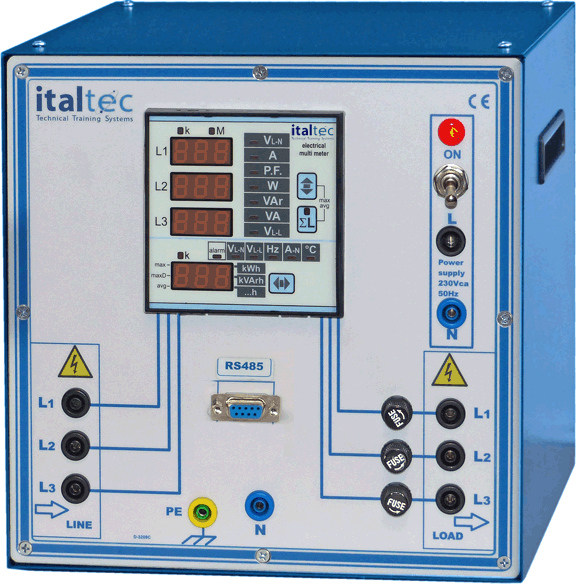

THREE PHASE NETWORK ANALYSER


MOD.3209
3PH Digital Net Analyser

Range: 0-500V; 0-5A;
READINGS:
-Active & Reactive Power
-AC voltage,
-AC current,
-Active & Reactive power,
-Power factor,
-Frequency: 40 100Hz,
-Energy
Dimensions: LxWxH: 25x25x15cm
Weight: 5kg.
MOD.4209-A
Three phase network analyser with RS232 and management software


Input: 3 Voltage L-L and L-N; up to 500V;
3 Current I1, I2, I3; 10 A
- (any current with additional TA)
READINGS:
Active, reactive & apparent power
Active, reactive & total energy counters
Frequency: 40 100Hz
Power factor: +/- 1.00
Possible contemporary readings with software:
48 analogue and digital pages with Max e min;
48 bargraph indications with Max, min and alarms
72 graphic channel recorders
Accuracy 0,5%.
Dimensions: LxPxH: 25x25x15 cm;
Weight: 4,2 kg.

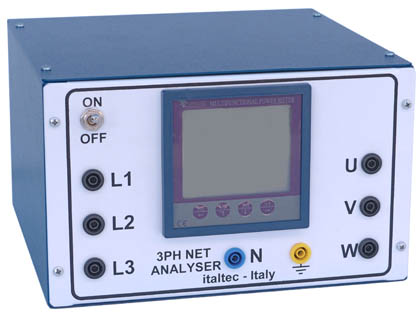

MOD.4209-B
Three phase network analyser
with RS485 interface
Input: 3 Voltage L-L and L-N; up to 400V
3 Current I1, I2, I3 ; 30 A
- (any current with additional TA)
READINGS:
Active, reactive & apparent power
Active, reactive & total energy counters
Frequency: 45 65Hz
Power factor +/- 1.00
Accuracy: 0,5% (frequency: 0,1%).
Dimensions: LxPxH: 25x25x15 cm;
Weight: 4,2 kg.

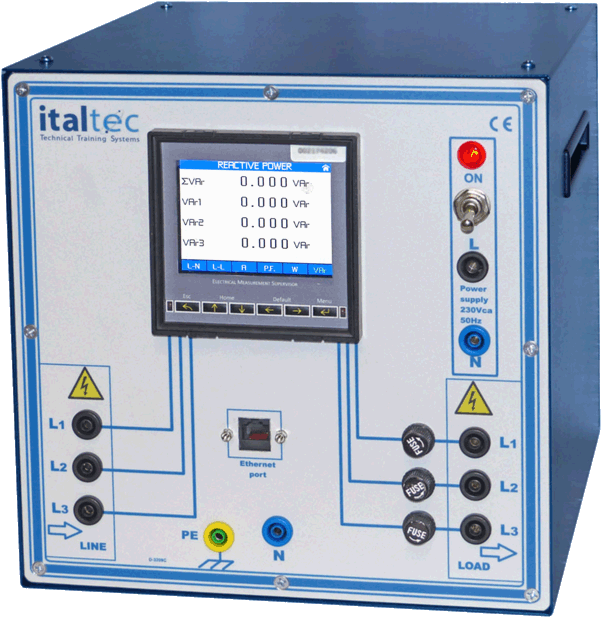

MOD.4209-C
Three phase network analyser with RS232 and management software


--> Analyser details

--> Software details
Input: 3 Voltage L-L and L-N; up to 700V
3 Current I1, I2, I3; Up to 20 A
- (any current with additional TA)
READINGS:
-Active, reactive & apparent power
-Active, reactive & total energy counters
-Frequency: 30 900Hz
-Power factor: +/- 1.00
Possible contemporary readings with software:
-48 analogue and digital pages with Max e min;
-48 bargraph indications with Max, min and alarms
-72 graphic channel recorders
-32 channel for harmonic visualisation up 31th
-24 channel for waveform visualisation (oscilloscope)
Accuracy: 0,5%.
Dimensions: LxPxH: 25x25x15 cm;
Weight: 4,2 kg.




THREE PHASE NETWORK ANALYSER
WITH RS232 AND MANAGMENT SOFTWARE


Technical features:
Dimensions: 25 x12 x 30cm.  Weight: about 4kg
Supply voltages: 115 - 230 - 400 V AC
Inputs:  FOR 3 OF  4WIRES  LINES Voltage up to 600V AC Current up to 20A.
(Up to 1000A with optional Current Transformers)

READINGS
PHASE AND SYSTEM VOLTAGE: V-kV VL1-N, VL2-N, VL3-N, -
SVL-N
LINE VOLTAGE: V-kV, VL1-L2, VL2-L3, VL3-L1  -
SVL-)
PHASE ABD SYSTEM CURRENT: A-kA IL1, IL2, IL3, -
SI
PHASE AND SYSTEM POWER FACTOR: PFL1, PFL2, PFL3, -
SPF
PHASE AND SYSTEM ACTIVE POWER: W-kW-MW - PL1, PL2, PL3, -
SP
PHASE AND SYSTEM REACTIVE POWER: VAr-kVAr-MVAr - QL1 QL2, QL3, -
SQ
PHASE AND SYSTEM APPARENT POWER: VA KVA - MVA - AL1, AL2, AL3, -
SA
FREQUENCY: Hz, FL1
NEUTRAL CURRENT: (On demand) A-kA IN

ACTIVE ENERGY THRIPHASE:
SkWh
REACTIVE ENERGY THRIPHASE:
SkVAh

INSTANT MAXIMUM VALUES:
PHASE VOLTAGE: VL1-NMAX VL2-NMAX VL3-NMAX
PHASE CURRENT: IL1MAX IL2MAX IL3MAX
ACTIVE THRIPHASE POWER:
SPlmax
REACTIVE TRIPHASE POWER:
SAlmax
APPARENT THRIPHASE POWER:
SSlmax

MAXIMUM MEDIA VALUES WITHIN 15':
PHASE CURRENT: IL1MAX/(AV) IL2MAX/(AV) IL3MAX/(AV)
ACTIVE THRIPHASE POWER:
SPLMAX(AV)
REACTIVE THRIPHASE POWER:
SALMAX(AV)
APPARENT THRIPHASE POWER:
SSLMAX(AV)

MEDIUM VALUES WITHIN 15':
MEDIUM ACTIVE POWER: (max demand)
SP(AVERAGE)
MEDIUM REACTIVE POWER: (max demand)
SA(AVERAGE)
MEDIUM APPARENT POWER: (max demand)
SS(AVERAGE)

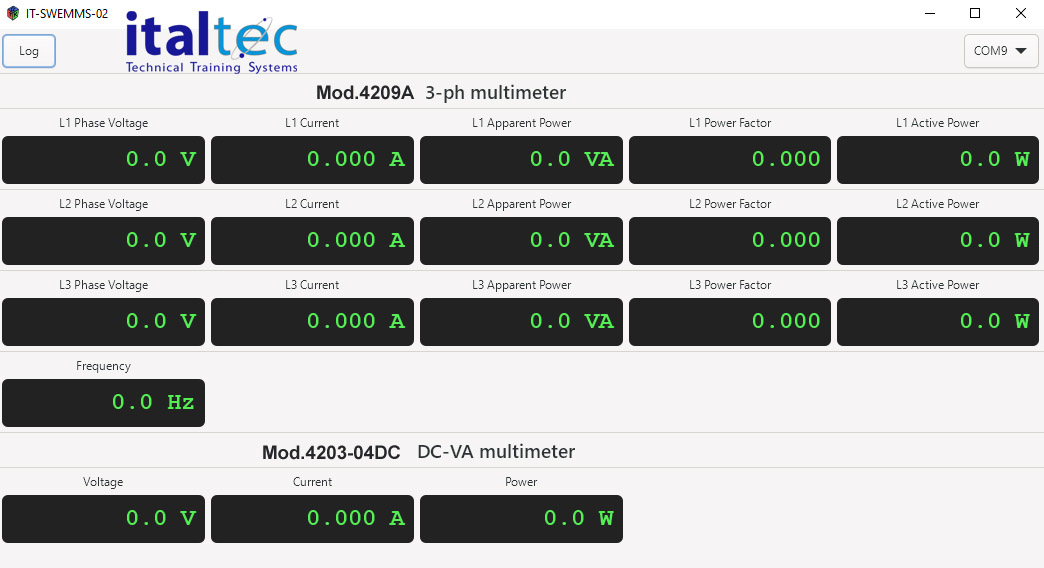

Using RS232 + managment software it is possible create on PC screen the followings:
Go to software show
- 48 contemporary analogue and digital readings with Max and min values
- 48 contemporary bargraph readings wit Max, min and alarms
- 72 channels for trend recorders
- 32 channels harmonics recorder
- 48 pages for FFT analyse
- K-Factor page
- 24 screen for waveforms monitoring
- min & Max values
- Time Bands
- Counters page
- Energies pages
- 32 alarms status
- 8 digital outputs
- 8 digital inputs
- Power's sum table
- Temperature table
- Real time measure with contemporary showing of all values (45 lectures)

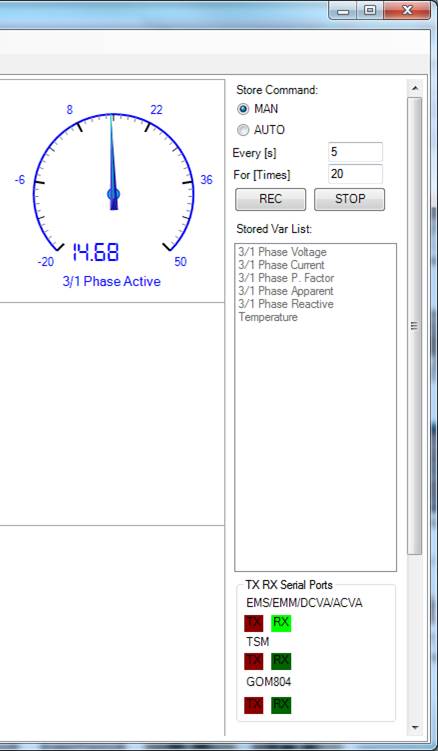

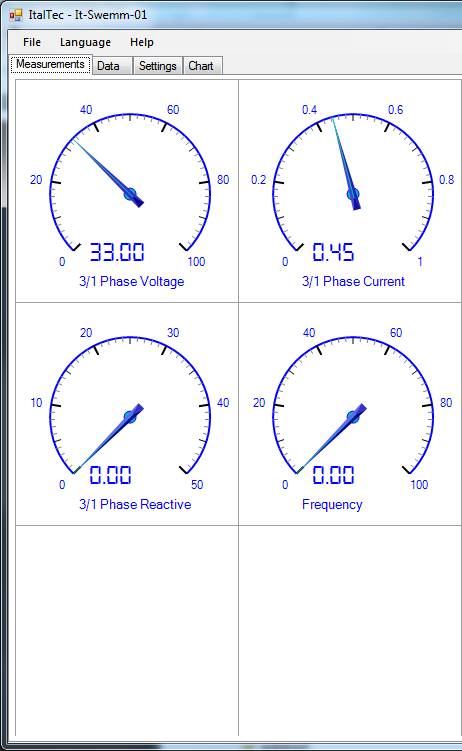

   SOFTWARE FOR 4209-A & 4209-C
THREEPHASE NETWORK ANALYSER'S SOFTWARE
Supervision and control software for PC data mangement with our three phase network analysers ad data acquisiton systems. Software is very impressive and extremely easy to operate, developed for Windows operating system.
- Possibility of management of setup of conected meters.
- Complete programming, recording and alarm management.
- Recording of Max and min alarms and data logger event.
- Showing of energy absorbtion in time bands.

 Digital and analogue showing (on analogue meters, digital meters and bargraph) of all line parameteres (voltage, current, frequency, power factor, active power, reactive power, apparent power, active energy, reactive energy positive and negative) with alarm set points.

Bargraph visualisation sample

Digital and graphic harmonics visualisation of voltage and current  up to 31.component (4209-C ONLY)


Real time measure table with possibility of conversion on electronic page (Excel)


Signal recording

Waveform visualisation (4209-C ONLY)
