E.M.M.S. 4 - Electrical Machines Modular System 1 kW
  R - L - C  Loads

R.L.C. STEPS VARIABLE LOADS

MOD.4020-R Resistive Load Module 1kW
Module fitted with 9 resistors in three identical groups to realise balanced or unbalanced 3-phase loads (star and delta) and single phase loads.
Each phase can be independently varied in 7 uniform steps from 0 to max current value for full power.
Single phase connection provides 21 regulation steps.

Input/Outputs: 4 mm CE safety sockets
Unit type: Table top / frame unit;
Dimensions: LxWxH: 50x29x21cm.
Weight: 7 kg;

MOD.4021-R
Like Mod.4020-R but provides 20 balanced steps (5%-10%-15%-20%-25%-30% up to 100%) Monophase or Three-phase.





MOD.4020-L Inductive Load Module 1kVA
Module fitted with 9 inductors in three identical groups to realise balanced or unbalanced 3-phase loads (star and delta) and single phase loads.
Each phase can be independently changed in 7 uniform steps from 0 to max current value of full load.
Single phase connection provides 21 regulation steps.
Input/Outputs: 4 mm CE safety sockets
Unit type: Table top / frame unit;
Dimensions: LxWxH: 50x 29x21cm.
Weight: 14 kg;

MOD.4021-L
Like Mod.4020-L but provides 20 balanced steps (5%-10%-15%-20%-25%-30% up to 100%) Monophase or Three-phase.

MOD.4020-C Capacitive Load Module 1kVA
This is a module fitted with 9 capacitors in 3 identical groups to realise balanced or unbalanced 3-phase loads (star and delta) and single phase loads.
Each phase can be independently changed in 7 uniform steps from 0 to max current value of full load.
Single phase connection provides 21 regulation steps.

Input/Outputs: 4 mm CE safety sockets
Unit type: Table top / frame unit;
Dimensions: LxWxH: 25x25x15cm.
Weight: 4 kg;


MOD.4021-C
Like Mod.4020-C but provides 20 balanced steps (5%-10%-15%-20%-25%-30% up to 100%),
Monophase or Three-phase connection.



MOD.4020-RLC
Resistive - Induc. - Capac. Load 1kVA


MOD.4020-RLC Resistive & Induc. & Capac. Load 1kVA
Single module with three sections, each with 9 loads.
Each set of resistors/inductances/capacity consists of three identical groups to give mono and three phase loads, with balanced and unbalanced way, star and delta connection.
Each phase can be varied independently in 7 uniform steps, from 0 to maximum value of full load.
Single phase connection provides 21 regulation steps.

Input/Outputs: 4 mm CE safety sockets
Unit type: Table top / frame unit;
Dimensions: LxWxH: 70x 40x40cm.
Weight: 30kg;


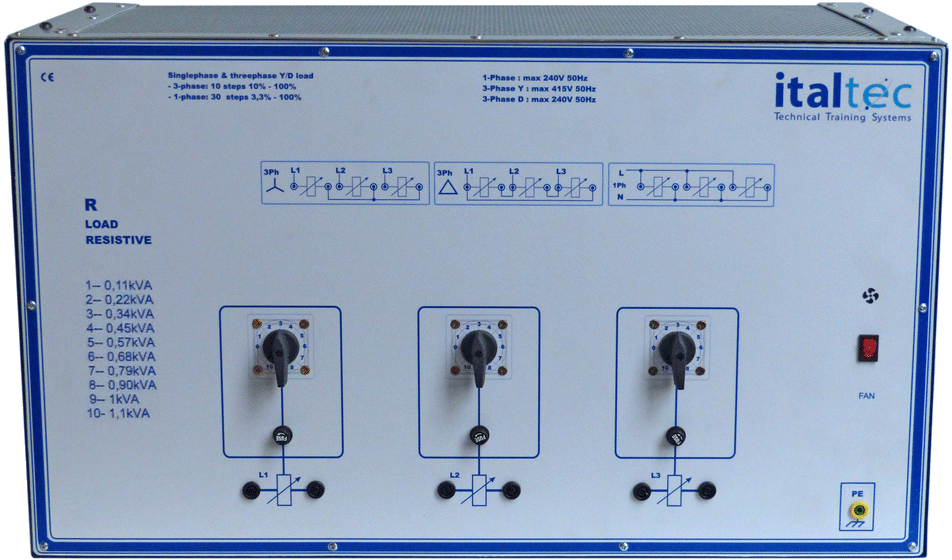

MOD.4020-10RLC01 Resistive & Induc. & Capac. Load 1kVA
Single module with three sections, each with 12 loads.
Each set of resistors/inductances/capacity consists of three identical groups to give mono and three phase loads, with balanced and unbalanced way, star and delta connection.
Each phase can be varied independently in 10 uniform steps, from 0 to maximum value of full load.
Single phase connection provides 30 regulation steps.

Input/Outputs: 4 mm CE safety sockets
Unit type: Table top / frame unit;
Dimensions: LxWxH: 100x 40x40cm.
Weight: 30kg;


CONTINOUSLY VARIABLE LOADS
MOD.4016-R
Load resistor for 1000W d.c. generators

Resistance: 10% - 100% continuously variable;
Nominal power: 100W - 1000W continously variable;

Input/Outputs: 4 mm CE safety sockets
Unit type: Table top / frame unit;
Dimensions: LxWxH: 50x 29, x21cm.
Weight: 8 kg;

MOD.4018-R
Load resistor continuously variable 1000W

Resistance: 3 x 10% - 100% continuously variable;
Power: 100W to 1000W continously variable;

Input/Outputs: 4 mm CE safety sockets
Unit type: Table top / frame unit;
Dimensions: LxWxH: 50 x29x21cm.
Weight: 8,5 kg;


Download/view - PDF -


All RLC Loads: from 0,3 to 20Kw
